Auriga 2S – receiver

RELIABLE AND FLEXIBLE.
ALL-PURPOSE.

  • Digital and analogue inputs and outputs
  • Potential free relays
  • Configuration according to client requirements
  • Strong compact IP65 ABS-housing
  • Support for keypad and/or display
  • Pair up to 10 working handheld transmitters at once
  • Global frequencies (434 MHz, 915 MHz, 2.4 GHz)
REF: auriga-2s Categoria:

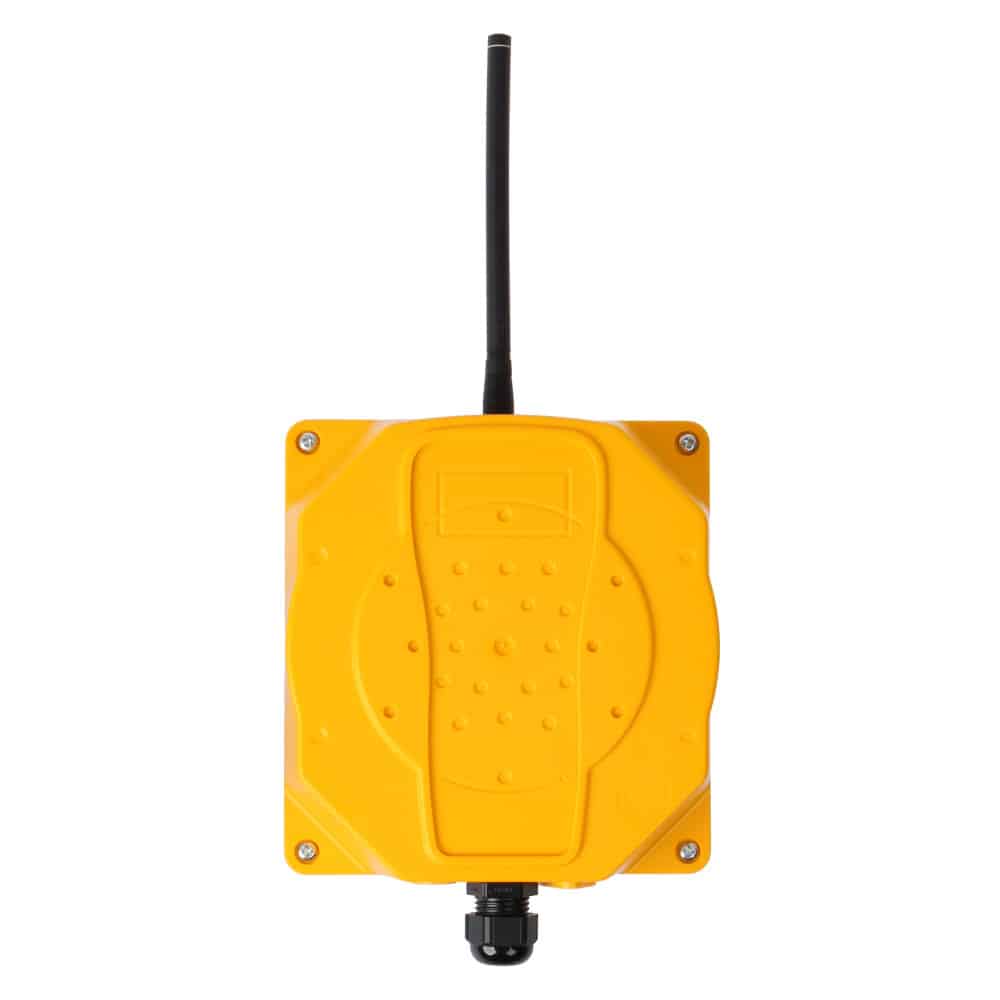

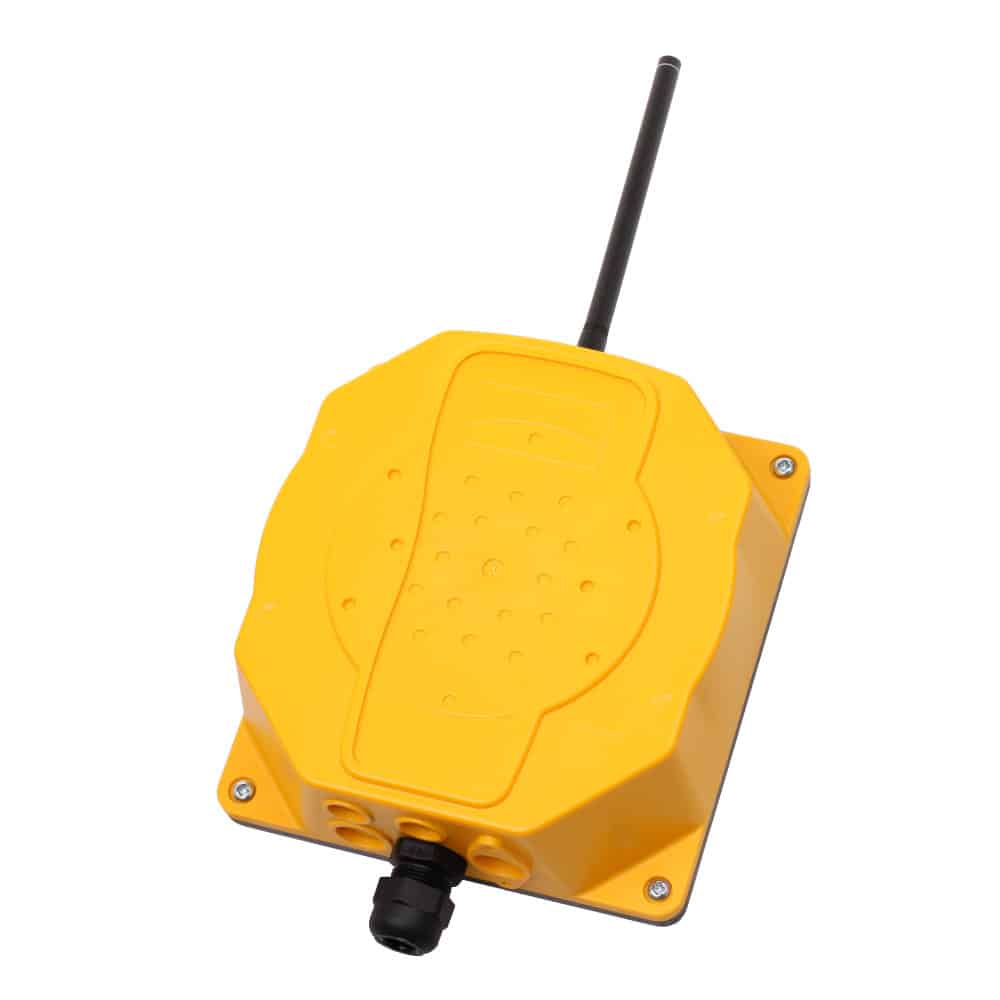

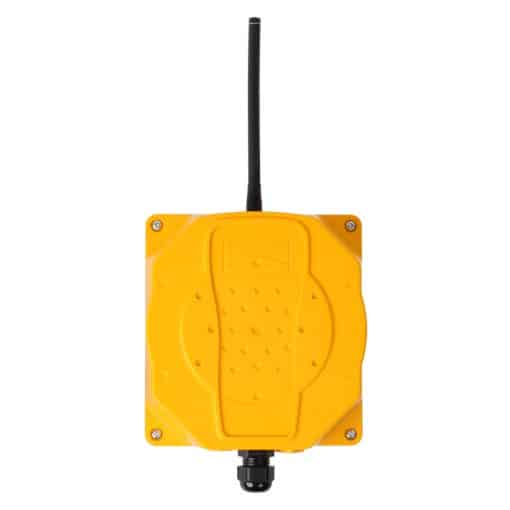

Auriga 2S – receiver

The Auriga 2S revolutionizes control in industrial operations. It’s a durable, flexible receiver that’s designed to excel in any field, from agriculture to construction, and maritime to mobile applications.

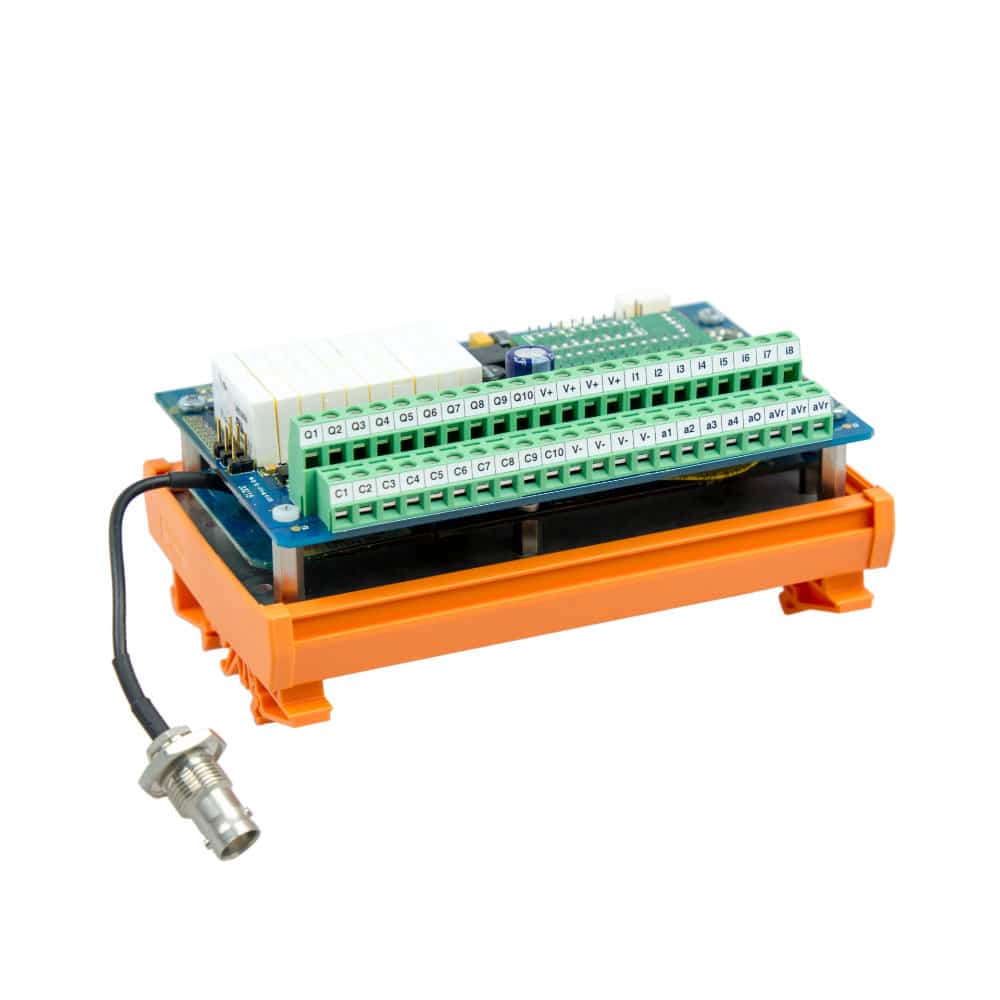

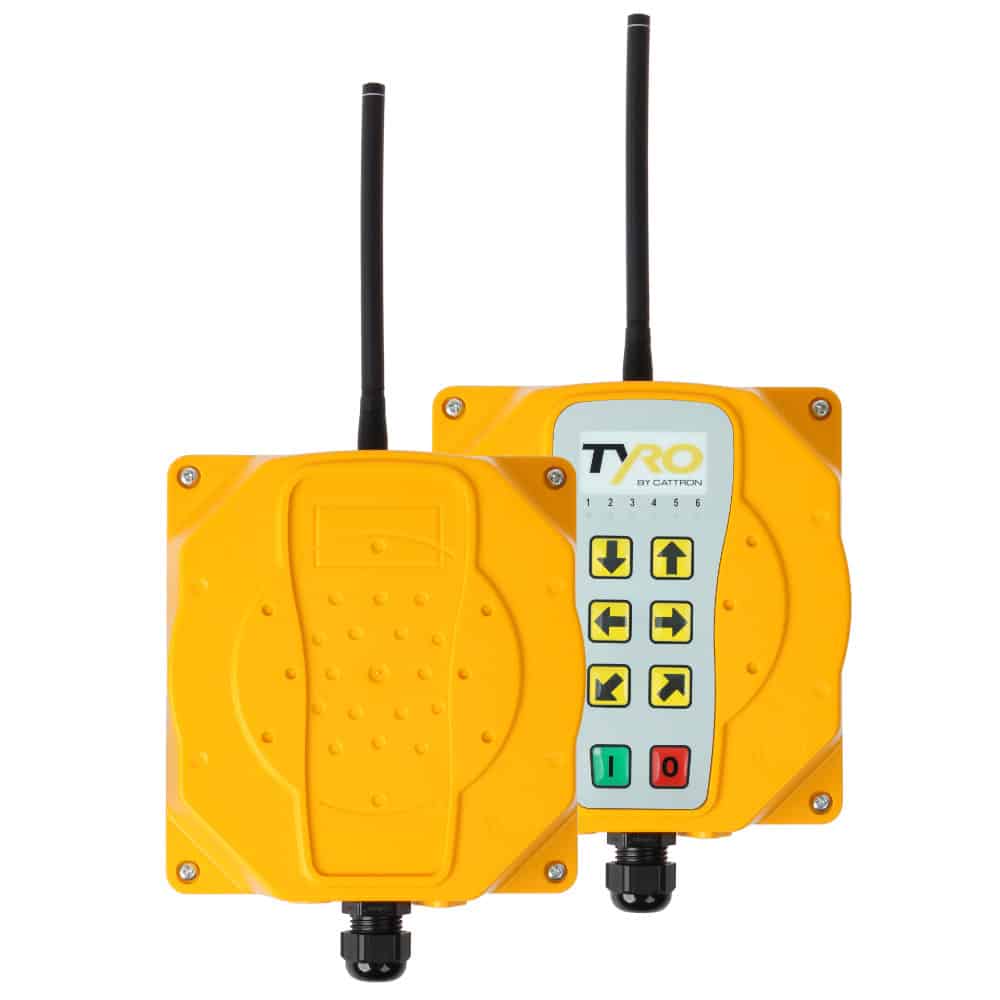

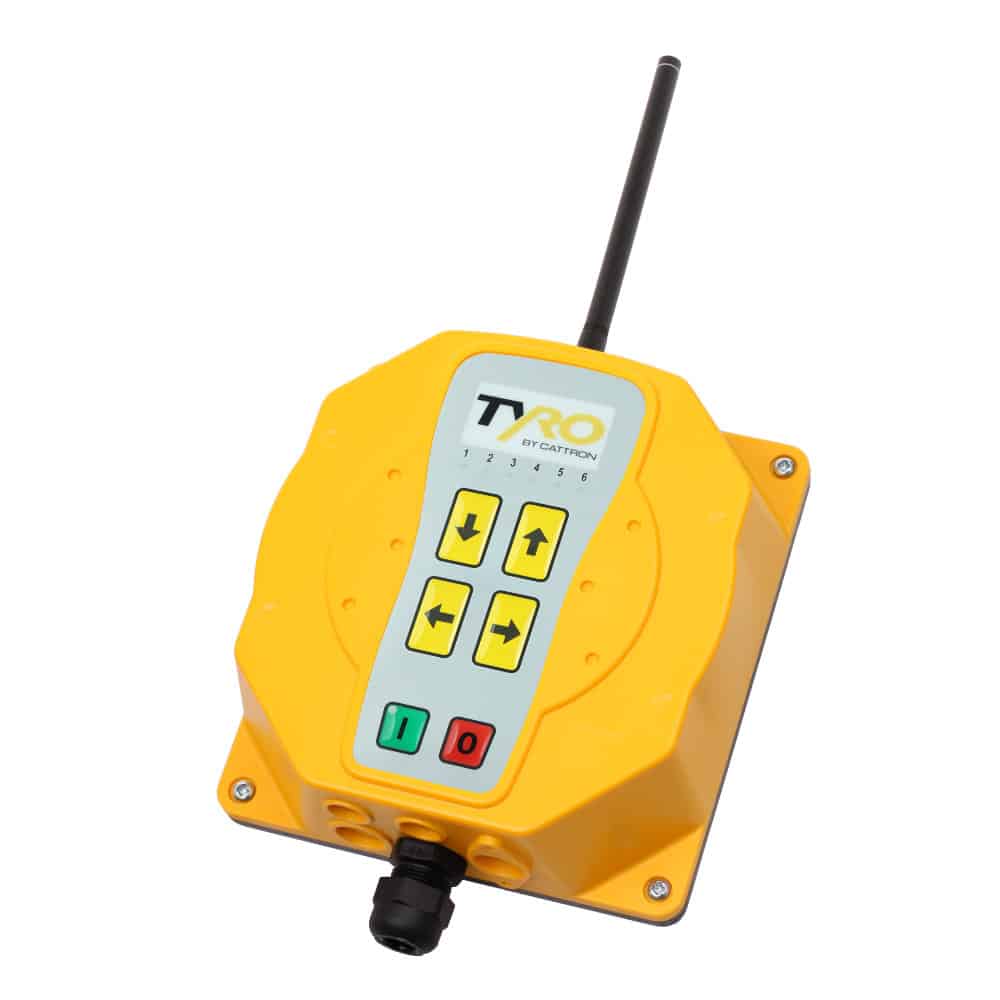

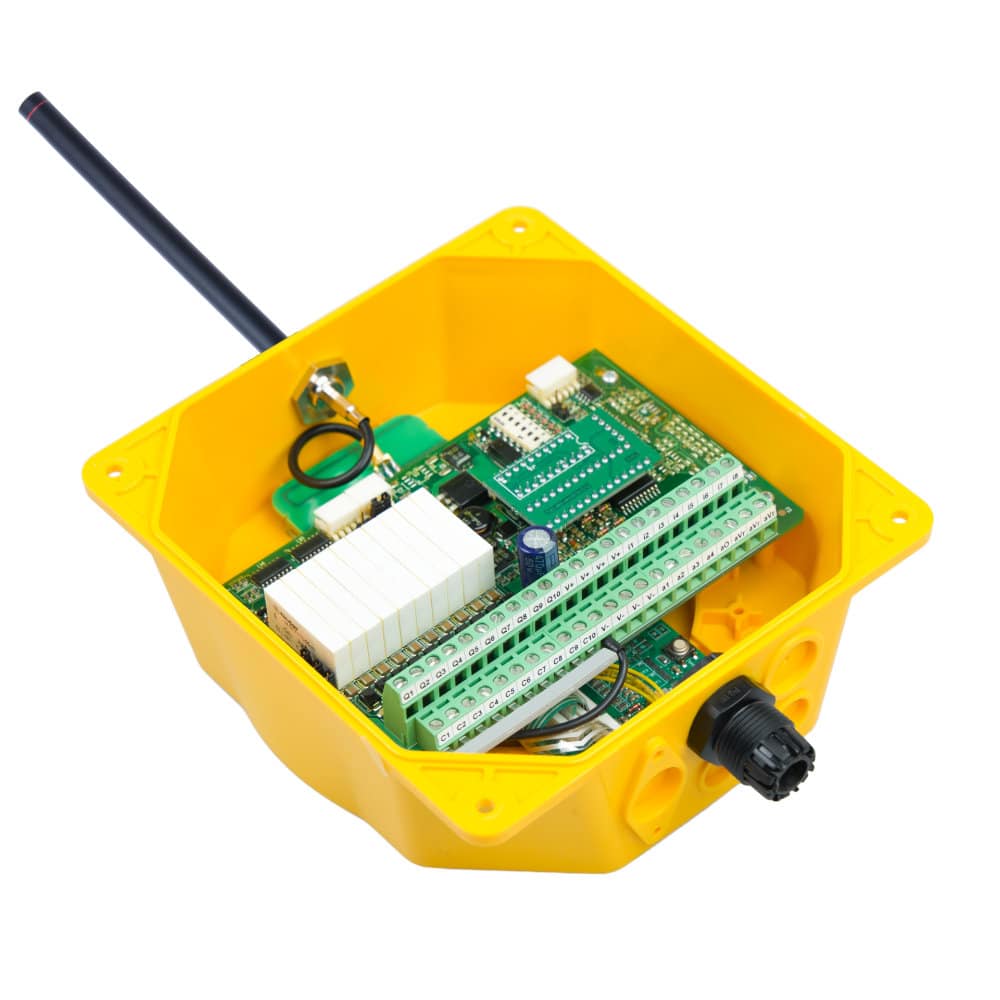

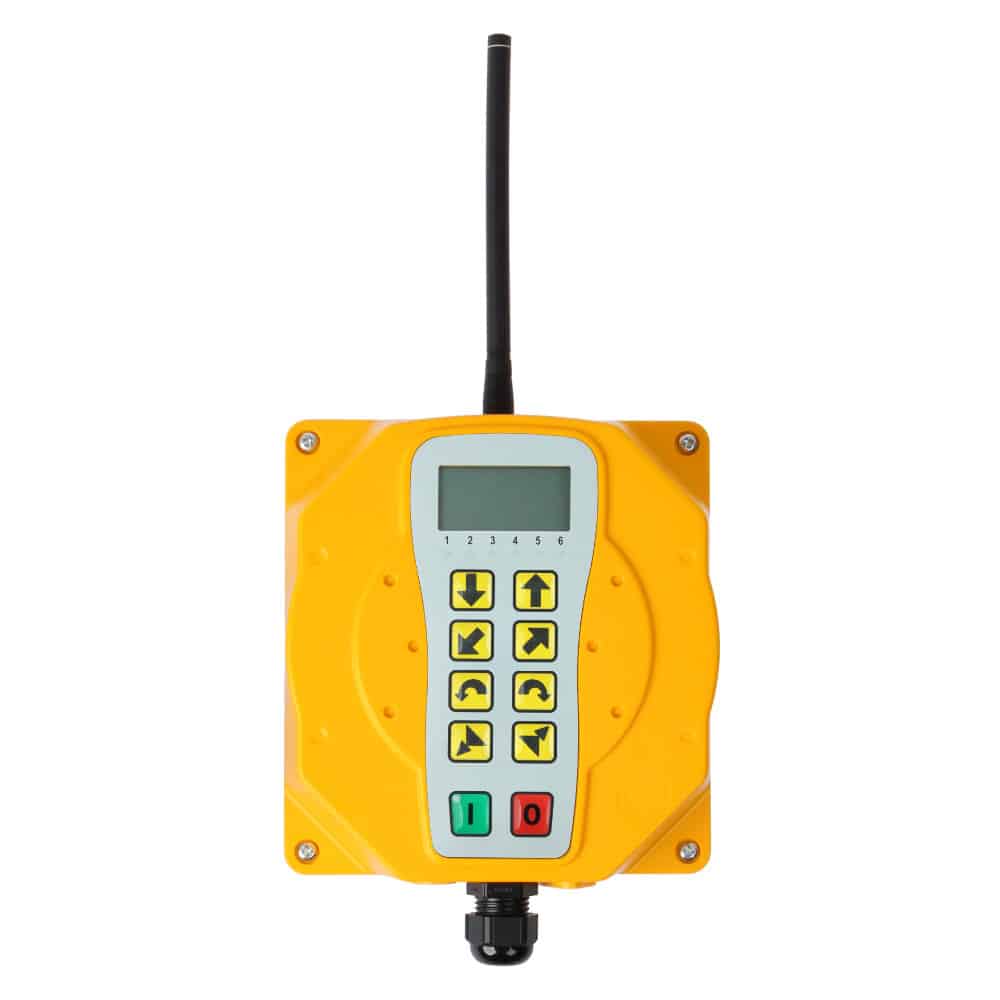

With its capability for ten digital outputs and modular I/O board extensions, the Auriga 2S adapts to your needs, offering unrivaled reliability and versatility. Suitable for almost all kind of applications and preferred by many worldwide customers. Enjoy enhanced convenience with its optional keypad or backlit display, making adjustments straightforward and efficient.

Tell us your application and requirements, and we’ll help you choose the right remote control solution. Fill out our remote control selector to get personal advice with no obligation.

Personal remote control selector

Worldwide Frequency Support with hopping

The Auriga 2S operates on 434 MHz, 915 MHz, or 2.4 GHz frequencies, making it suitable for use worldwide. With frequency hopping, the remote always finds the best channel, ensuring optimal performance in various environments.

Block "7484" not found

Frequency (+hopping protocol)

2.4 GHz (FHSS), 434 MHz (LBT+AFA), 915 MHz (FHSS)
Antenna

SMA
Modo de comunicação

Duplex
Transmission power

10.0 dBm at 434 MHz, 915 MHz, 20 dBm at 2.4 GHz (default)
Reaction time

Approx. 0.1 second
Transmitters per receiver

2.4 GHz: Max. 8 transmitters, 434 MHz, 915 MHz: Max. 10 transmitters
Certification

CE, ECE-R10, FCC, ISED, RCM, RED
Degree of protection

IP65
Temperature range

-40°C / +80°C, -40°F / +176°F
No. of function buttons

Keypad with 2 – 10 keys
Max. current load

4A per output, total max 10A
Max. switching voltage

8 – 36 VDC
Power supply

8 – 36 VDC
Digital outputs

10
Digital inputs

8
Analog outputs

1 (5*)
Analog inputs

4
PWM

–
Bus networks

–
Cable connection

Not included
Dimensions

Please see productsheet
Weight

Please see productsheet
