Quotation request

Scorpius 2S – receiver

COMPACT. CONFIGURABLE.
MULTIPURPOSE.

  • Two selectable housings, IP68 fully casted water, shock and impact resistant or lightweight IP65 openable ABS-housing.
  • PL-c safety level (ISO 13849-1)
  • Prewired, plug and play (1.5m / 3.18”)
  • Dual communication (duplex) via Cat1. radio
  • High-level of configurability according to client requirements
  • Global frequencies (434 MHz, 915 MHz)
  • Optional interfaces (RS232, CANbus, J1939)
REF: scorpius-2s Categoria:

Scorpius 2S – receiver

The Scorpius 2S is a multipurpose powerhouse with flexible and configurable digital-minded capabilities. This makes it future-proof to suit all kinds of industrial applications. Its Cat.1 radio with PL-c certification ensures a safe, reliable and strong connection. The installation is plug&play thanks to the prewired cable(s).

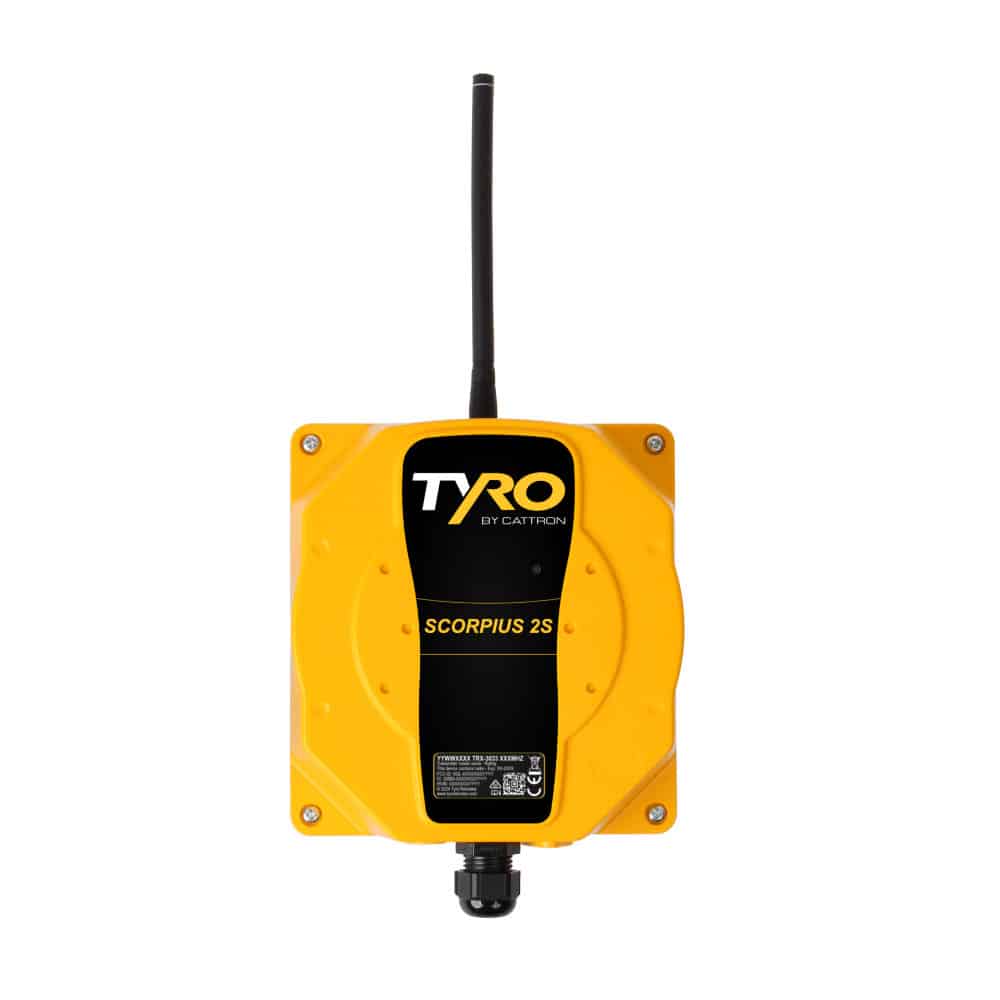

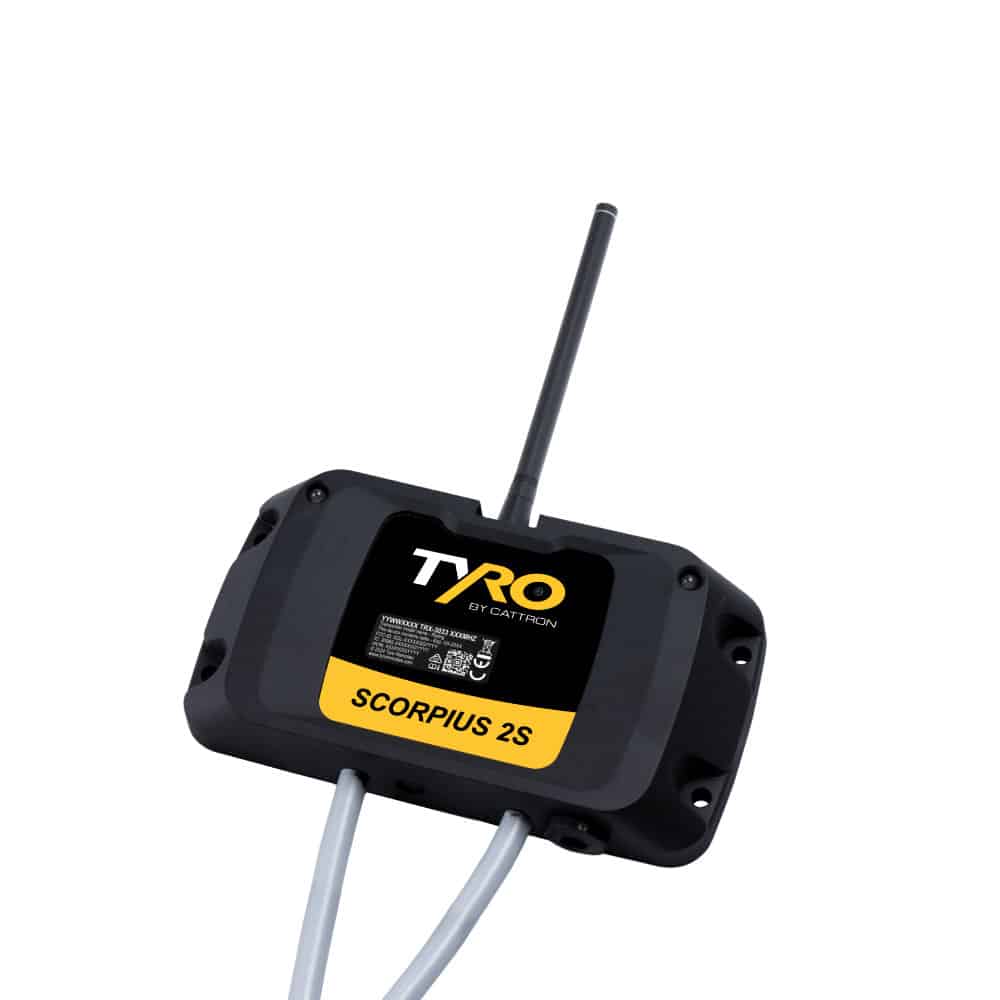

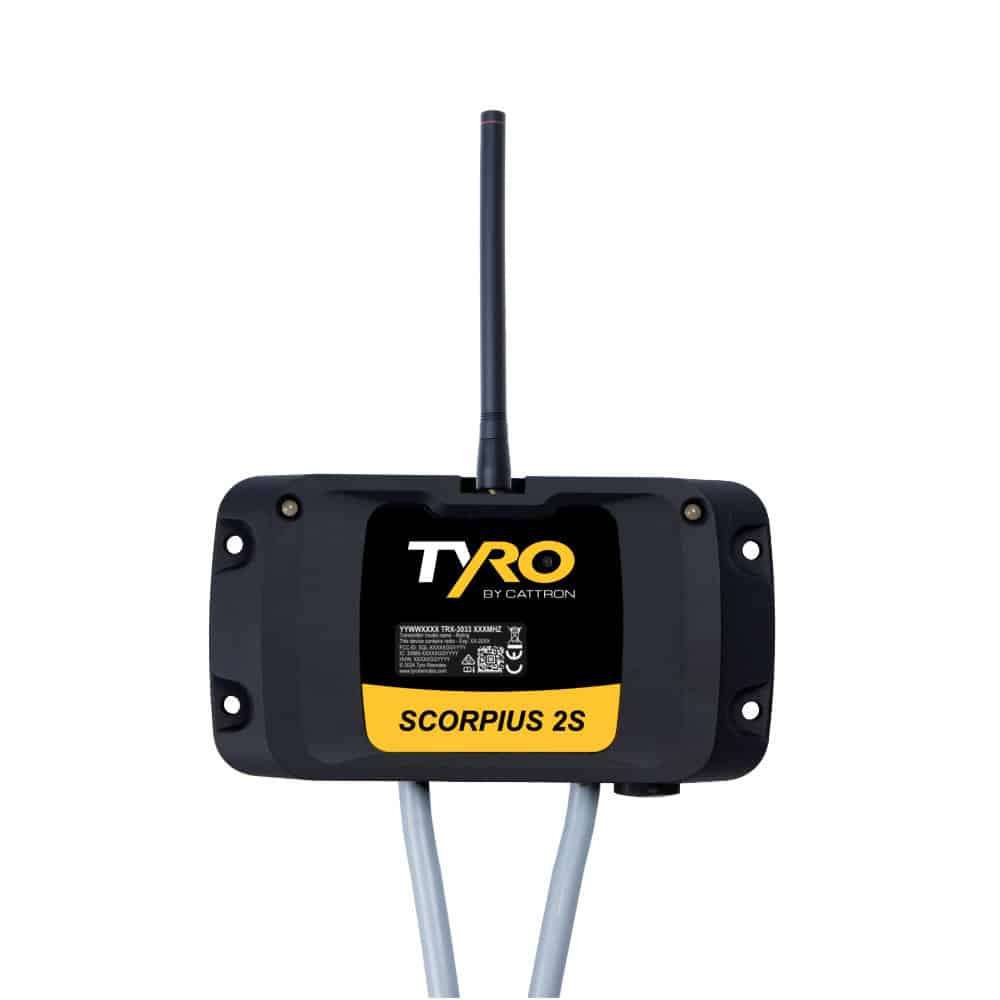

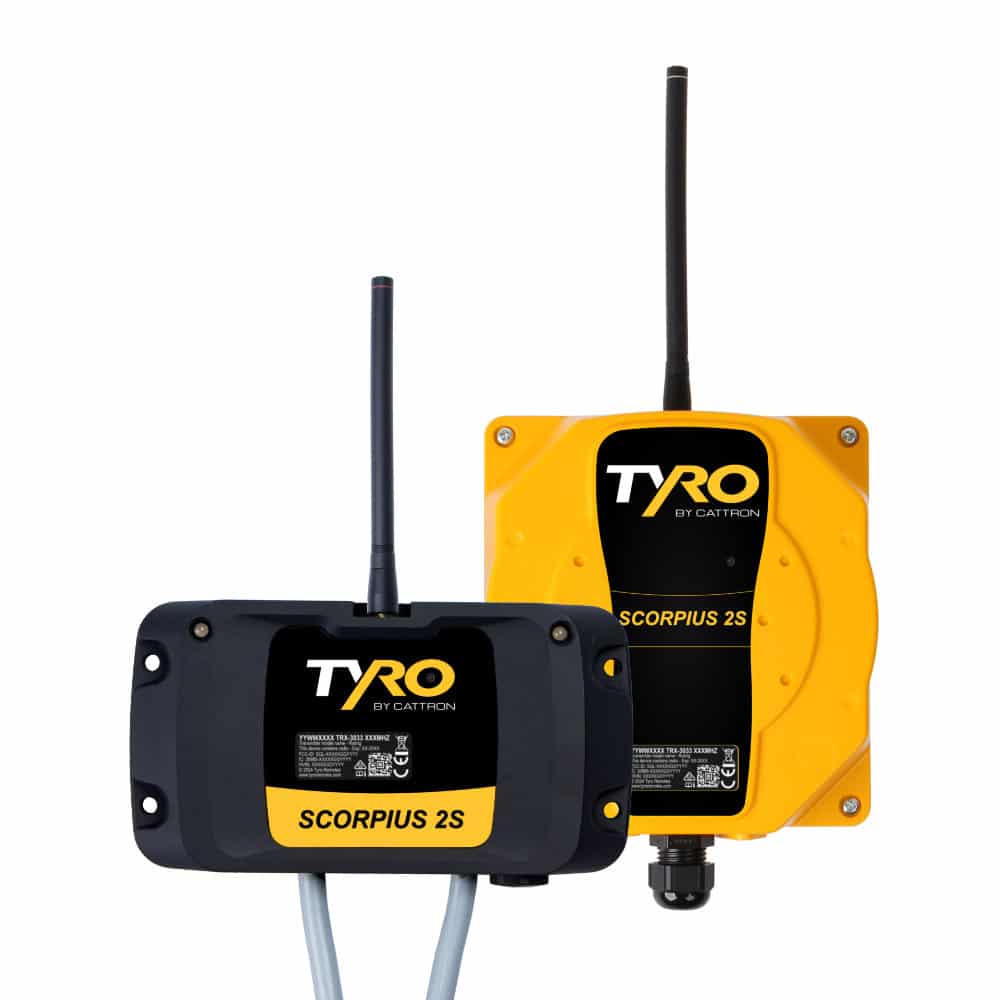

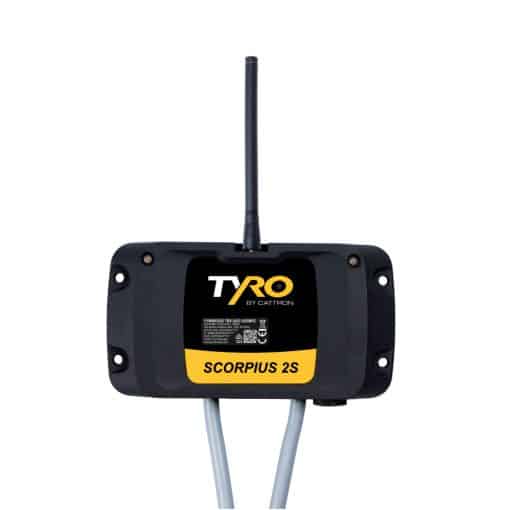

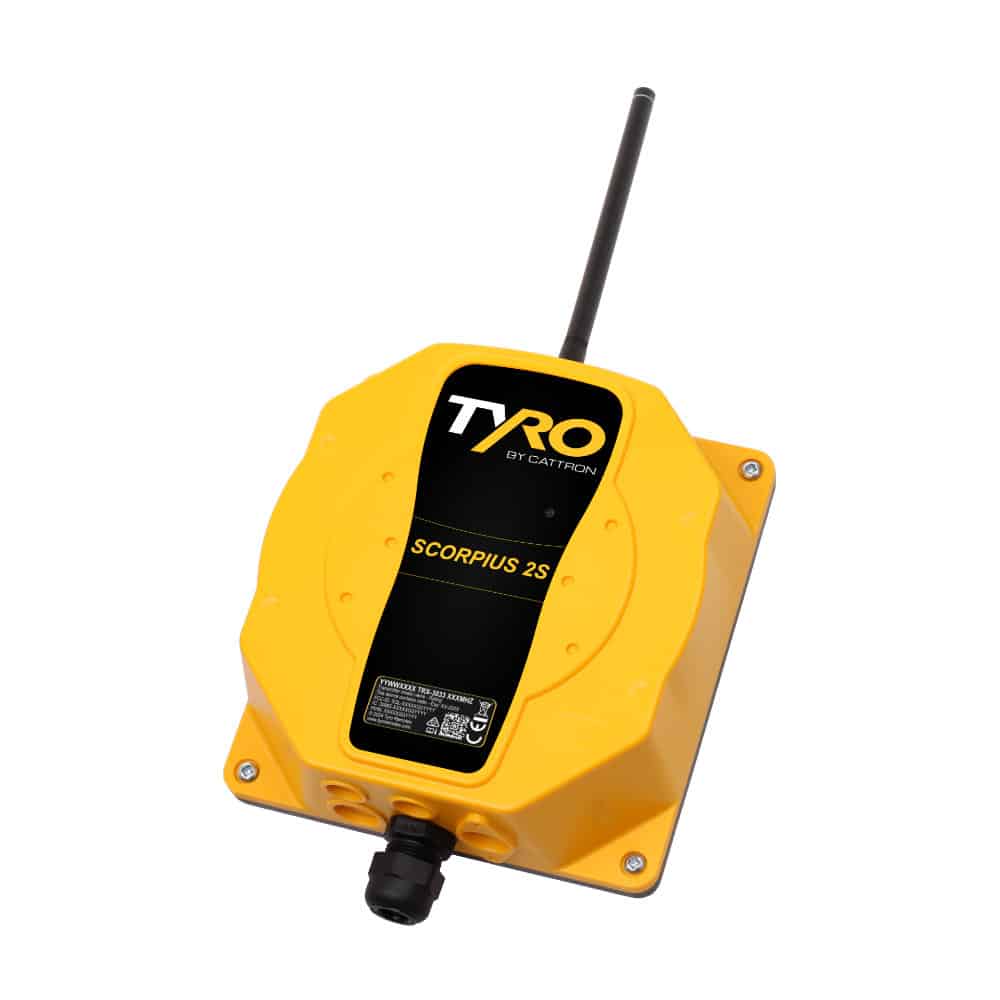

The Scorpius 2S is a solid choice in all environments and when space could be a factor. Choose from two compact types of housings. A solid casted IP68 water, impact and shockproof housing. Or an openable strong IP65 ABS-housing.

Personal remote control selector

Worldwide Frequency Support

The Scorpius 2S operates on 434 MHz and 915 MHz frequencies, making it suitable for use worldwide.

Block "7484" not found

Frequency (+hopping protocol)

434 MHz, 915 MHz
Antenna

SMA
Modo de comunicação

Duplex
Transmission power

10.0 dBm at 434 MHz, 915 MHz
Reaction time

Approx. 0.1 second
Transmitters per receiver

434 MHz, 915 MHz: Max. 10 transmitters
Certification

CE, ECE-R10, FCC, ISED, ISO 13849-1 ISO PL-c, RCM, RED
Degree of protection

IP65 (ABS housing), IP68 (solid cast housing)
Temperature range

-40°C / +80°C, -40°F / +176°F
Max. current load

4A per output, total max 10A
Max. switching voltage

8 – 36 VDC
Power supply

8 – 36 VDC
Digital outputs

8 – 14
Digital inputs

max. 4
Analog outputs

max 2.
Analog inputs

–
PWM

–
Bus networks

CANbus, J1939, RS232
Cable connection

(std. length: 1.5 mtr / 3.18"), 1 or 2 cables (15 + 4,6 or 10-core)
Dimensions

Please see productsheet
Weight

Please see productsheet

Receba a ficha do produto diretamente no seu email
